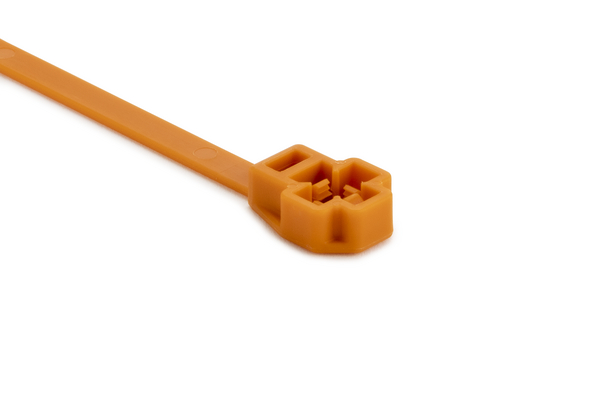

Fixing tie for stud, ∅3.5-50.0mm, orange, 2500pcs.
Art.-No. 157-04015 | T80ROSLPSB5-6U-PA66HIRHS-OG Details

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications
Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
Colour Orange (OG), High Voltage (HV)
Fixation Method Stud Mount
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T80ROSLPSB5-6U-PA66HIRHS-OG
Pack Cont. 2500pcs.
Package Content packed in carton
Product Group 1-piece fixing ties for weld studs
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T80ROSLPSB5-6U
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 3.5-50.0mm
Bundle ∅ min. 3.5mm
Height (H) 6.30mm
Length (L) 208.3mm
Min.Tensile Strength 355N
Stud ∅ 0.20 ", 0.24"
Stud ∅ 5.0 mm, 6.0 mm
Thickness (T) 1.4mm
Width (W) 14.22mm
for Hole ∅ (FH) M6 x 1, M5 x 0.8, T5, T6
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
Country of Origin MX
GTIN-13 / EAN 4031026665313
Packaging 3 - Height (m) 0.3635375m
Packaging 3 - Length (m) 0.5889625m
Packaging 3 - Qty 2500
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0612
Packaging 3 - Width (m) 0.28575m
Packaging 4 - Qty 60000
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
