27/07/2024

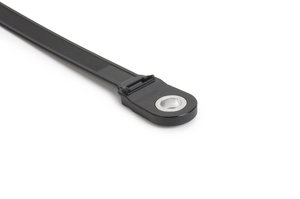

Fixing tie for stud, ∅9.5-82.6mm, black, 500pcs.
Art.-No. 157-00474 | WSI6MMB-PA66HIRHSUV-BK |  Details

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION WSI6MMB-PA66HIRHSUV-BK
    Pack Cont. 500pcs.
    Package Content packed in carton
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type WSI6MMB
    Bundle Diameter max (metric) 82.6mm
    Bundle ∅ 9.5-82.6mm
    Bundle ∅ min. 9.5mm
    Height (H) 4.9mm
    Length (L) 334.0mm
    Min.Tensile Strength 535N
    Thickness (T) 1.4mm
    Width (W) 12.7mm
    for Hole ∅ (FH) 6.2 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026628707
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
