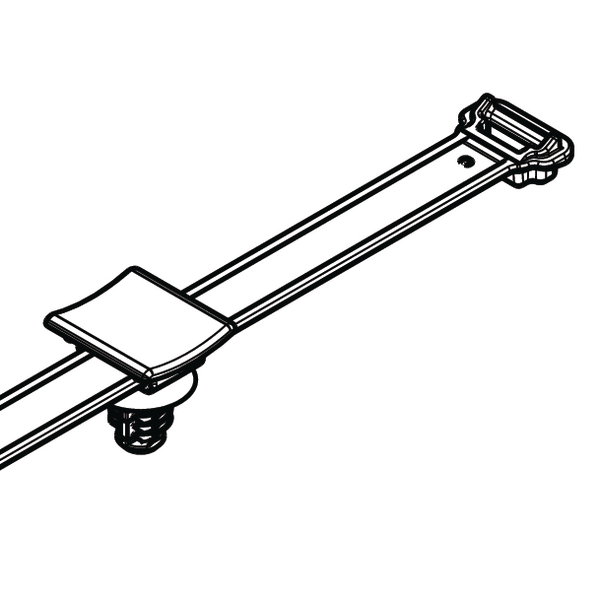

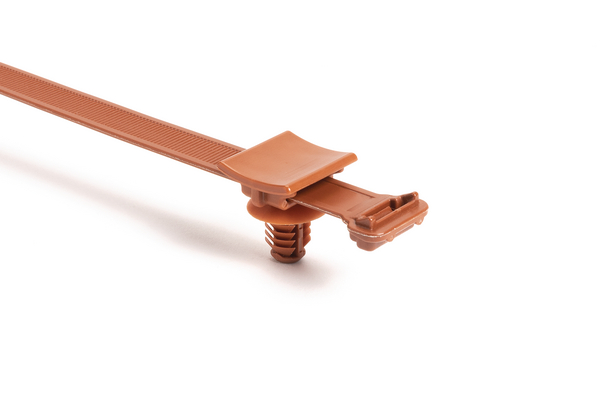

Fixing tie for hole (round), inside serrated, ∅9.4-57.15mm, brown, 1200pcs.
Art.-No. 156-02435
| WSSDFTM10WSSDSET-PA46-BN
|
Details
| Colour | Brown (BN) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Material | Polyamide 4.6 (PA46) |
| PART DESCRIPTION | WSSDFTM10WSSDSET-PA46-BN |
| Pack Cont. | 1200pcs. |
| Package Content packed in | bag |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | WSSDFTM10WSSDSET |
| Variant | Inside Serrated |
| Bundle Diameter max (metric) | 57.15mm |
| Bundle ∅ | 9.4-57.15mm |
| Bundle ∅ min. | 9.4mm |
| Height (H) | 23.7mm |
| Length (L) | 231.14mm |
| Min.Tensile Strength | 533N |
| Panel Thickness max. | 0.6 - 6.0mm |
| Weight/Unit | 0.0039kg |
| Width (W) | 22.6mm |
| for Hole ∅ (FH) | 7.6 - 8.4 mm, M10 Threaded |
| for Panel Thickness min - max | 0.6 - 6 mm |
| for Panel Thickness min - max | 0 - 0.2 " |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +130 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026702193 |
| Packaging 1 - Qty | 300 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 1.170001kg |
| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Qty | 1200 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 5.500004kg |
| Packaging 3 - Width (m) | 0.2921m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 14400 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 87.0kg |
| Packaging 4 - Width (m) | 0.8m |
