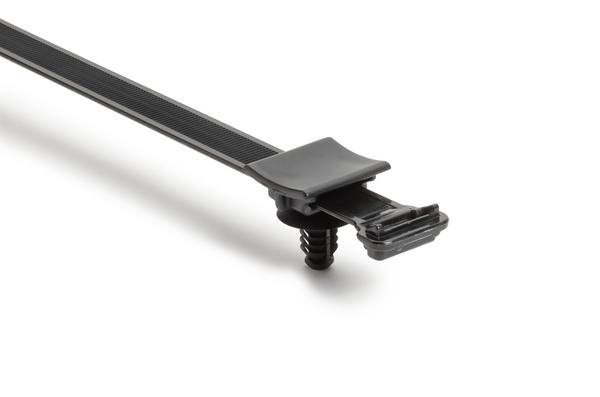

Fixing tie for hole (round), inside serrated, ∅9.4-57.15mm, black, 5000pcs.
Art.-No. 156-02461 | WSSDFTM8WSSDSET-PA66HIRHS-BK |  Details

    Package size
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION WSSDFTM8WSSDSET-PA66HIRHS-BK
    Pack Cont. 5000pcs.
    Package Content packed in bag
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type WSSDFTM8WSSDSET
    Variant Inside Serrated
    Bundle Diameter max (metric) 57.15mm
    Bundle ∅ 9.4-57.15mm
    Bundle ∅ min. 9.4mm
    Height (H) 22.77mm
    Length (L) 231.14mm
    Min.Tensile Strength 533N
    Panel Thickness max. 0.6 - 6.0mm
    Width (W) 22.6mm
    for Hole ∅ (FH) 6.1 - 7.0 mm, M8 Threaded
    for Panel Thickness min - max 0.6 - 6 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin US
    GTIN-13 / EAN 4031026740461
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Width (m) 0.396875m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
