Fixing tie for stud, ∅5.0-55.0mm, black, 200pcs.
Art.-No. 156-03356 | X120SSBS5-6C-A-PA66HS/PA66HIRHS-BK |  Details

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type M5 Screw, M6 Screw

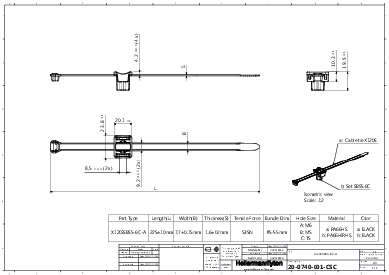

    PART DESCRIPTION X120SSBS5-6C-A-PA66HS/PA66HIRHS-BK
    Pack Cont. 200pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties for Weld Studs
    Tie Closure plastic pawl
    Type X120SSBS5-6C-A
    Bundle Diameter max (metric) 55.0mm
    Bundle ∅ 5.0-55.0mm
    Bundle ∅ min. 5.0mm
    Length (L) 225.0mm
    Min.Tensile Strength 535N
    Stud ∅ M5, M6
    Thickness (T) 1.6mm
    Width (W) 7.7mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026657257
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
