Cable tie not serrated, 100mx12.7mm, natural, 100m
Art.-No. 111-01478 | ELN-SCI-PA66-NA |  Details

    Add to watchlist
    Downloads Datasheet

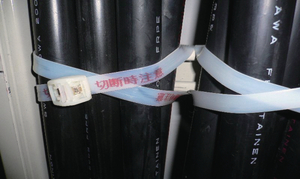

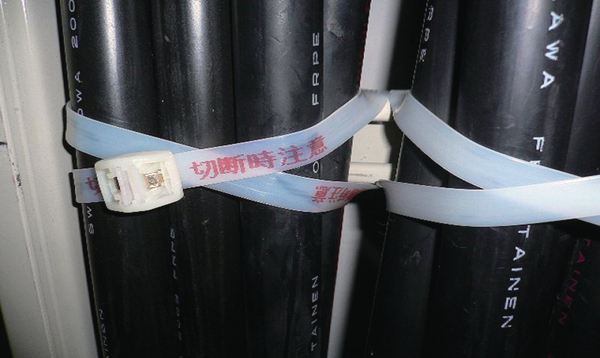

    Application Binding band for tying large-diameter / vertical trunk cabling.
    Application Tool MK15
    Colour Natural (NA)
    Fixation Method Connector Clip
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION ELN-SCI-PA66-NA
    Pack Cont. 100m
    Package Content packed in bag
    Product Family EL Series
    Product Group Endless Strap
    Releasable Closure (Yes/No) No
    Tie Closure fibreglass pin
    Type ELN-SCI

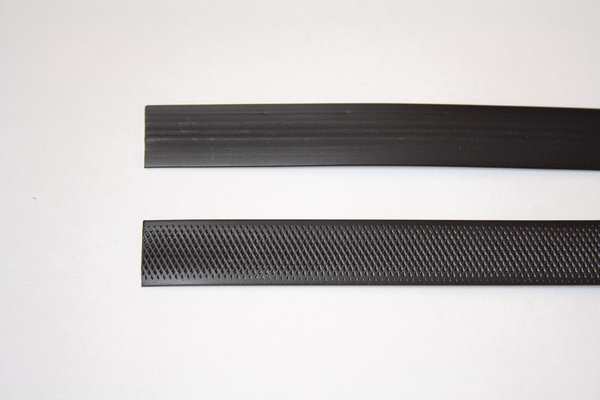

    Variant Not Serrated
    Length (L) 100m
    Min.Tensile Strength 1110N
    Width (W) 12.7mm
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387103649
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
