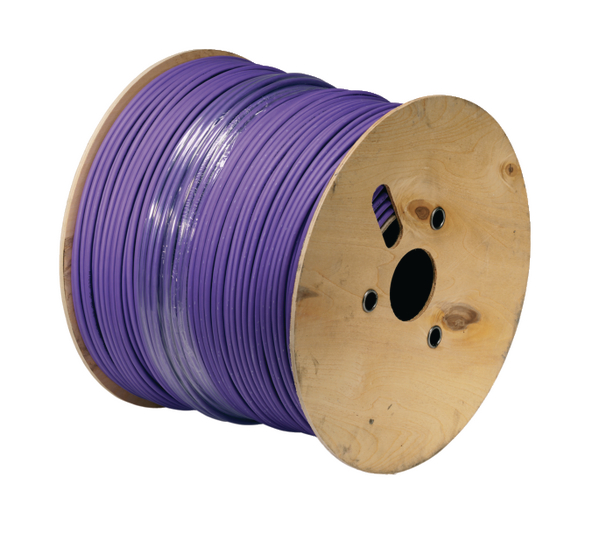

Category 6A F/FTP Shielded Bulk Cable - Cca
Art.-No. 851-05105 | CA199 | Details

More products in this product group:

Colour	Violet (VT)
Description	Category 6A Cable is a F/FTP construction with individual pair screening eliminating the possibility of alien crosstalk. The cable is marked at 1m intervals for accurate measuring. Conforms to CPR Euroclass rating Cca, S1a, d1, a1
PART DESCRIPTION	CA199
Pack Cont.	500m
Package Content packed in	drum
Performance Category	Category 6A (Class EA)
Product Family	Category 6A F/FTP Shielded Cable - Cca
Product Group	Category 6A F/FTP Shielded Cable - Cca
Short Description	Category 6A F/FTP Shielded Bulk Cable - Cca
Technical Description	The Category 6A Cable is constructed as a U/FTP Cable and exceeds the relevant performance requirements of ISO/IEC 11801-2 and TIA/ANSI 568-C.2 EN50173, IEC 61156-5, EN 50288-10-1. The LSHF-FR sheath conforms with fire rating IEC 60332-1, 60332-3-24, 60754-2 and 61034. The copper conductor is AWG 23 and the cable has an nominal overall diameter of 7.6mm. This cable complies with the requirements within the Construction Products regulations EN50575:2014+A1:2016 - Power, control and communication cables. Cables for general applications in construction works subject to reaction to fire requirements
Type	CA199
