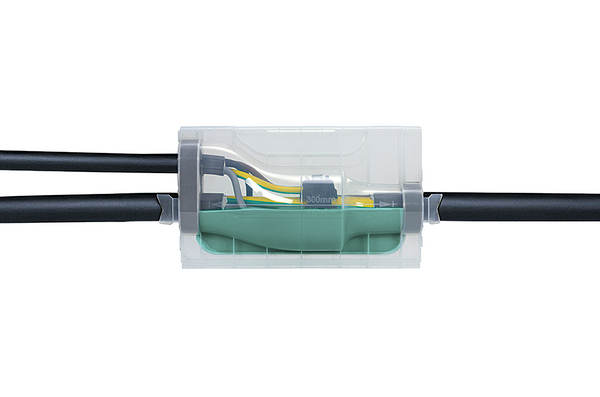

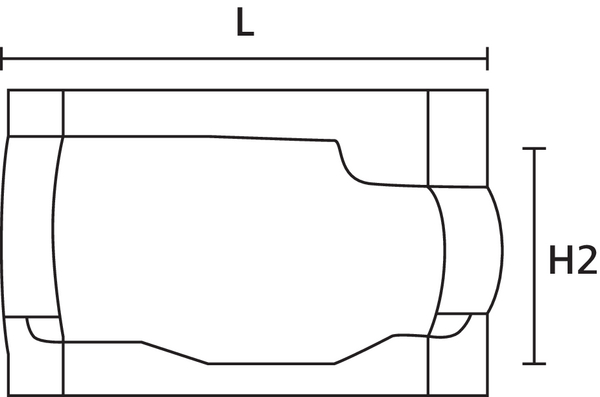

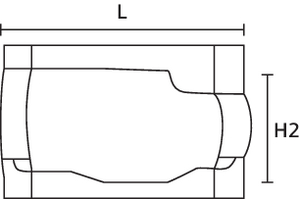

Cast resin joint, Parallel P, 4 x 70mm² to 4 x 240mm², L=420mm, 3900 ml/5343 g, Polyurethane resin (PUR) green
Art.-No. 435-12077
| PAH-4 / SF-PUR-GN
|
Details
- Colour changes from blue to green whilst mixing
- Impact-proof, transparent moulding shell
- Compact, optimized dimensions
- Longitudinally and transversely watertight
- SF-system
- Joint can be submerged directly after casting
- Immediately ready for use
- Suitable for various compact branch clamping rings
More products in this product group:
| Application | The parallel branch joint PAH is a universal straight-through and branch joint. Suitable as single branch joint with various commercially availablel branch clamping rings. For polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables. Application: Especially designed branch joint for building and domestic connections to the low-voltage electrical network. Underground, submerged, outdoor, indoor. |
| Colour | Green (GN) |
| Content |
Cast resin PUR 33 In a two-chamber pouch Transparent moulding shell Foam seal, protective gloves, emery cloth Cleaning cloth, cable kit, installation instructions SF-nozzle (two-chamber pouch) |
| Material | Polyurethane resin (PUR) |
| No. of Wires | 4 |
| PART DESCRIPTION | PAH-4 / SF-PUR-GN |
| Pack Cont. | 1Set |
| Package Content packed in | set |
| Product Family | RELICON PAH-4 with PUR 33 |
| Product Group | Parallel branch cable joints house connections |
| Short Description | Parallel branch joint house connection 4x70 to 4x240, 4x70 to 4x120 |
| Type | PAH-4 / SF |
| Variant | Cast resin |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39095090 |
| GTIN-13 / EAN | 4031026626949 |
| Packaging 3 - Height (m) | 0.184m |
| Packaging 3 - Length (m) | 0.58m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0406m³ |
| Packaging 3 - Weight (kg) | 7.59kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 24 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 203.16kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +4 °C to +40 °C |
