19/11/2024

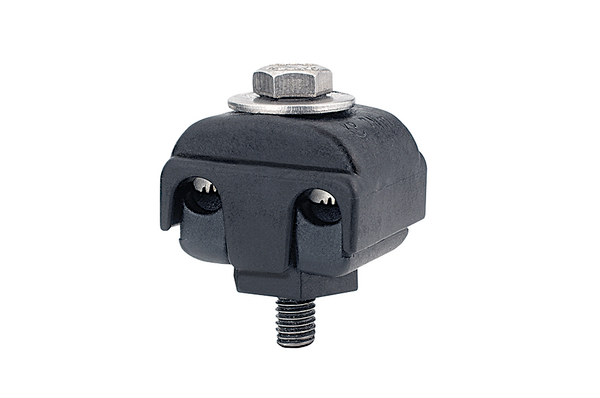

Tap connector, 1.5-16.0mm², black, 50pcs.
Art.-No. 435-01558 | Tap Connector 1516-ST-BK |  Details

Tap connector, insulated, for copper and aluminium conductors.

    • Suitable for insulalted aluminium and copper conductors
    • One bolt type, insulated
    Add to watchlist
    Downloads
    Application Insulated tap connector for screwing stranded and solid insulated aluminium and copper conductors.
    Colour Black (BK)
    Material Steel (ST)
    Mounting Screw Type M6 Screw
    PART DESCRIPTION Tap Connector 1516-ST-BK
    Pack Cont. 50pcs.
    Package Content packed in pcs.
    Product Family Tap connector, insulated, for insulated aluminium and copper conductors
    Product Group Connectors
    Short Description Tap connector 1516 ST/PP BK
    Type Tap Connector 1516
    Type of connection Screw connection
    Conductor Size Range mm² 1.5-16.0mm²
    Height (H) 28mm
    Weight/Unit 0.029492kg
    Width (W) 26mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Max. Torque (kgf-cm) 71kgf-cm
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 85369010
    GTIN-13 / EAN 4031026633398
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.03m
    Packaging 1 - Qty 1
    Packaging 1 - Type pcs.
    Packaging 1 - Volume (m³) 0.00003m³
    Packaging 1 - Weight (kg) 0.029492kg
    Packaging 1 - Width (m) 0.025m
    ETIM 7.0 Key EC001062
    ETIM 8.0 Key EC001062
    ETIM 9.0 Key EC001062
    cable jointing cable jointing

    Cable jointing

    Innovative cable jointing for reliable cable connections.
