Cast resin joint, armoured, Branch Y, 4 x 25mm² to 4 x 150mm², L=298mm, 2045 ml/2802 g, Polyurethane resin (PUR) green
Art.-No. 435-12216 | Y-5 A-PUR-GN Details

This product is not available anymore.
  • Two-part, impact-proof, transparent moulding shells
  • Compact, optimized dimensions
  • Standard cable diameters indicated on the shells
  • SF-system
  • Immediately ready for use
  • Longitudinally and transversely watertight
  • Joint can be submerged directly after casting
Show more
Application RELICON cast resin joints for armoured cables are suitable for polymeric cables with earth bonding/continuity of SWA and STA. The transparent two-chamber resin bag makes the mixing process visible and therefore more reliable. Included all necessary earth continuity parts that suits the complete range of the joint and consists of constant force springs with straight ends for easy installation without any classical injuries. The range of the constant force springs is also printed on the constant force spring to make installation comfortable and to avoid mistakes. Relicon branch joints are also suitable for cut and uncut mains and the PA-Line even for double service cables. Application: Public and private networks, In- and outdoor, above ground, underground or submerged, cable ducts.
Colour Green (GN)
Content Cast resin PUR 33 with ‘’colour change’’ in a transparent two-chamber pouch
PP Moulding shells, transparent

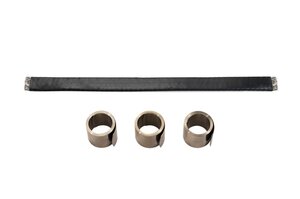

Earthing braid and constant force springs for armour continuity
SF-filling system and adapter
Emery cloth for roughening the cable sheath
HelaTape-Flex 15 insulating tape
HelaTape-Power 715 tape
Protective gloves
Detailed installation instruction and material list
Material Polyurethane resin (PUR)
No. of Wires 5
PART DESCRIPTION Y-5 A-PUR-GN
Pack Cont. 1Set
Package Content packed in set
Product Family RELICON Y-A Line SF Armoured with PUR 33
Product Group Branch cable joints
Short Description Branch joint Y-5-A / SF 4x50to 5x150
Type Y-5 A
Variant Cast resin
Angle 15
Banch Cable min 4 x 10mm²
Branch Cable max 4 x 50mm²
Cable Diameter Branch Cable 17-33mm
Cable Diameter Main Cable 35-51mm
Height (H2) 120mm
Length (L) 298mm
Main Cabel max 4 x 150mm²
Main Cable min 4 x 25mm²
Weight/Unit 3.919kg
Operating Temperature -25 °C to +130 °C
ROHS compliant Yes
Shelf Life 48 months
Specifications
Country of Origin DE
GTIN-13 / EAN 4031026627335
Packaging Bag
Packaging 1 - Height (m) 0.19m
Packaging 1 - Length (m) 0.52m
Packaging 1 - Qty 1
Packaging 1 - Type carton
Packaging 1 - Volume (m³) 0.03063
Packaging 1 - Weight (kg) 4.419kg
Packaging 1 - Width (m) 0.31m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 20
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 109.38kg
Packaging 4 - Width (m) 0.8m
Storage Temperature +4 °C to +40 °C
ETIM 7.0 Key EC001170
ETIM 8.0 Key EC001170
ETIM 9.0 Key EC001170
