23/12/2024

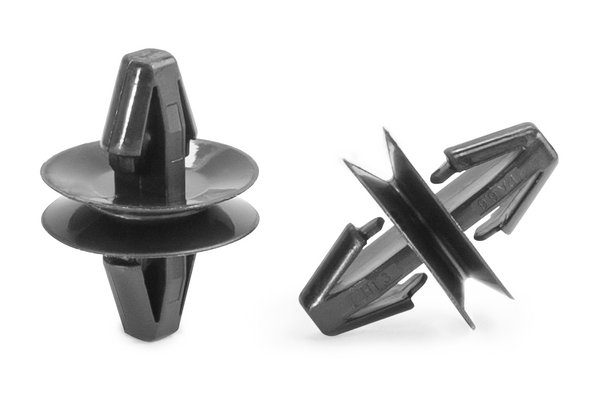

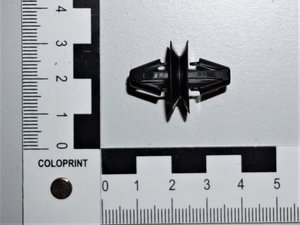

Cable clip for hole (round), ∅8.0 mm
Art.-No. 151-01226 | 2SFT8-PA66HIRHS-BK Details

Colour Black (BK)
Fixation Method arrowhead
Key product features for direct fixation
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION 2SFT8-PA66HIRHS-BK
Pack Cont. 1000pcs.
Package Content packed in box
Type 2SFT8
Weight/Unit 0.0012kg
for Hole ∅ (FH) 8.0 mm
for Panel Thickness min - max 3.5
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026474106
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m

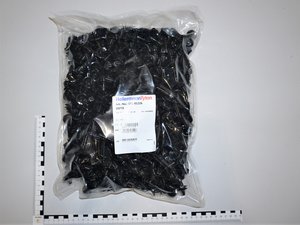

Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 1.221815kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 10000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 13.03815kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 177.48kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
