26/12/2024

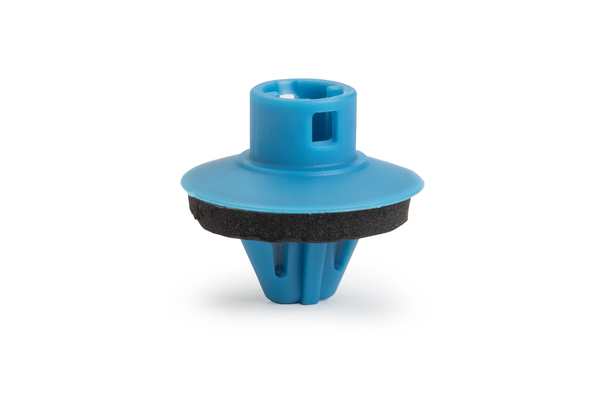

Blind plug, ∅6.1 - 6.9 mm, T=0.6 - 2.0mm, blue, 1000Bag
Art.-No. 133-03534 | AH6.65MDPLUG-PA66HIRHS-BU |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Blue (BU)
    Fixation Method arrowhead
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION AH6.65MDPLUG-PA66HIRHS-BU
    Pack Cont. 1000Bag
    Package Content packed in carton
    Type AH6.65MDPLUG
    Disc ∅ 20.5mm
    Height (H) 18.6mm
    Length (L) 20.5mm
    Panel Thickness max. 0.6 - 2.0mm
    Width (W) 18.6mm
    for Hole ∅ (FH) 6.1 - 6.9 mm
    for Panel Thickness min - max 0.6 - 2 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant No
    Reusable (Yes/No) No
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026596518
    Packaging 3 - Height (m) 0.1603502m
    Packaging 3 - Length (m) 0.5159502m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0282m³
    Packaging 3 - Width (m) 0.3413252m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
