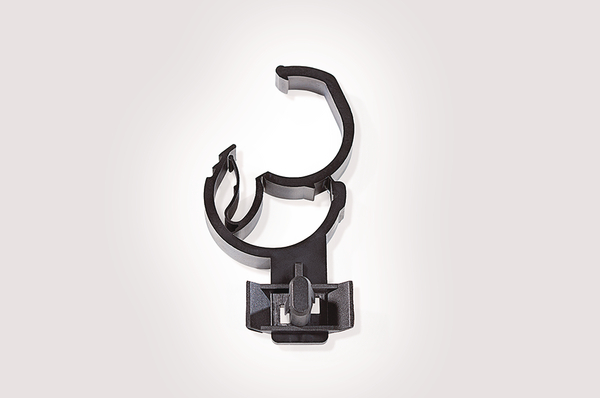

Cable clip for hole (oval), ∅6.2 x 12.2 mm, Dmin=17.0mm, Dmax=28.0mm
Art.-No. 151-00181 | AHC3DH-PA66HIRHS-BK |  Details

    • Push and click closure for fixing of wires
    • Clip is clicked into a specific hole
    • AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud
    Add to watchlist
    Downloads Datasheet
    Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
    Colour Black (BK)
    Key product features for multiple routing, for faster processing, lockable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION AHC3DH-PA66HIRHS-BK
    Pack Cont. 300pcs.
    Package Content packed in bag
    Product Family AHC-Series
    Product Group Fixing Elements for Tubes and Harnesses with Automatic Locking Feature
    Short Description Bundling Clip 66x10 mm, automatic locking, high impact modified, heat stabilised, black
    Type AHC3DH
    Bundle Diameter max (metric) 28.0mm
    Bundle ∅ 17.0-28.0mm
    Bundle ∅ min. 17.0mm
    Length (L) 43.7mm
    Weight/Unit 0.00765kg
    Width (W) 10.0mm
    for Hole ∅ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.5 - 2 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026337609
    Packaging 1 - Height (m) 0.3m
    Packaging 1 - Length (m) 0.625m
    Packaging 1 - Qty 300
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0825m³
    Packaging 1 - Weight (kg) 2.348478kg
    Packaging 1 - Width (m) 0.44m
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.4m
    Packaging 3 - Qty 300
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.024m³
    Packaging 3 - Weight (kg) 2.768478kg
    Packaging 3 - Width (m) 0.3m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 12000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 131.72kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
