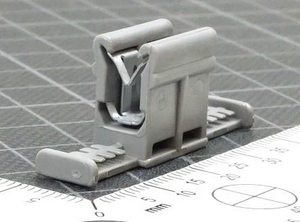

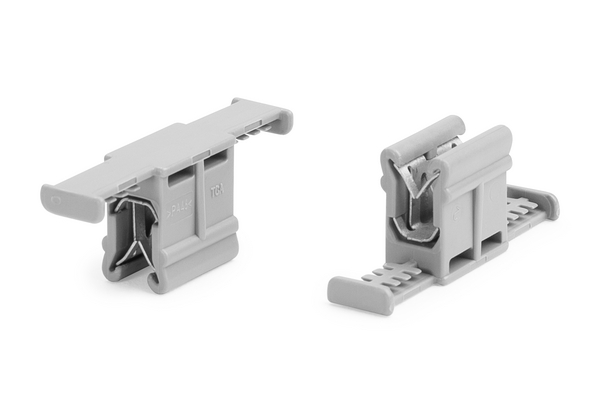

Bundling clip for edge, L=39.0mm, grey, 500pcs.
Art.-No. 102-68366 | ATSBCEC36-PA46-GY |  Details

Bundling Clip for edges 1.5 - 4 mm. Designed for our Autotools.

    • Optimized for use Automatic Cable Tying Systems
    • Easy to apply
    • Fixing elements can be used with the Autotool CPK hybrid and Autotool Systems 3080 / ATS flex
    • Special designed for automatisation processes
    Add to watchlist
    Downloads Datasheet
    Application This EdgeClip with bundling bar is special designed for automatisation processes. They can be used with the Autotool CPK hybrid and Autotool Systems 3080 / ATS flex but also with other cable ties or tapes. This product can beused on edges 1.5 - 4 mm.
    Colour Grey (GY)
    Key product features products for automatic tools
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION ATSBCEC36-PA46-GY
    Pack Cont. 500pcs.
    Short Description Bundling clip 39x9 mm, high impact modified, heat stabilised, black
    Type ATSBCEC36
    Bundling Bar Length 39.0mm
    Height (H) 13.2mm
    Panel Thickness max. 1.5 - 4.0mm
    Weight/Unit 0.00221kg
    Width (W) 15.0mm
    Width (W2) 9.0mm
    for Panel Thickness min - max 1.5 - 4 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026711850

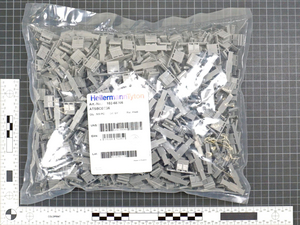

    Packaging 1 - Height (m) 0.06m
    Packaging 1 - Length (m) 0.315m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0051m³
    Packaging 1 - Weight (kg) 1.118862kg
    Packaging 1 - Width (m) 0.27m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
