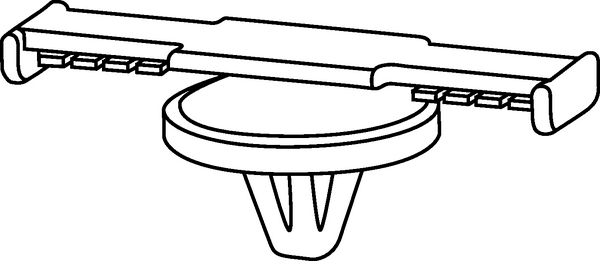

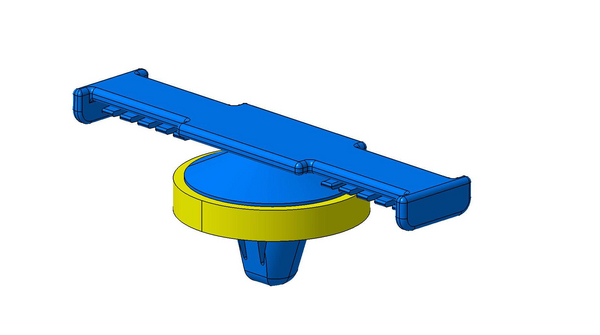

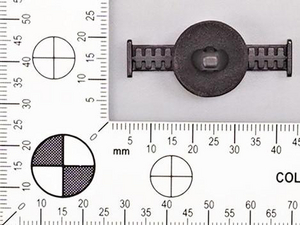

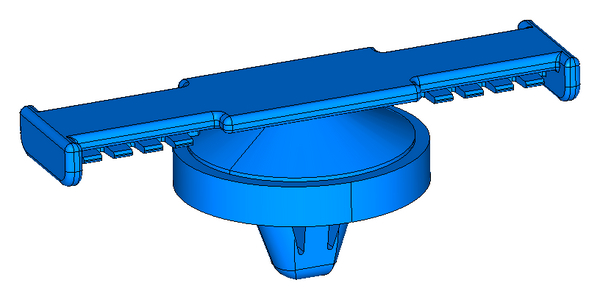

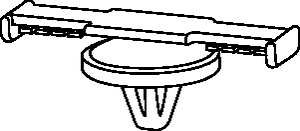

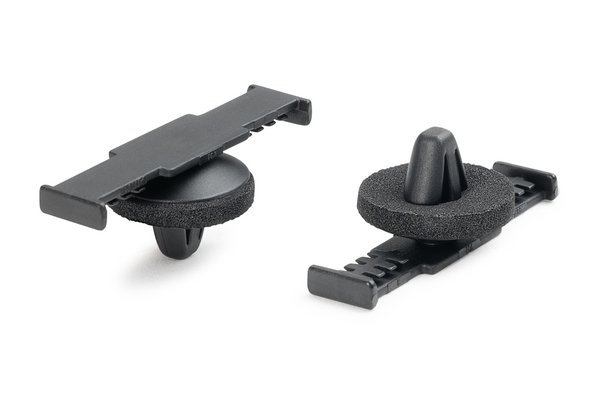

Bundling clip, L=39.0mm, black, 500pcs.
Art.-No. 102-69065
| ATSBCSFT6.5-MD-PA66HIRHS-BK
|
Details
- Optimized for use Automatic Cable Tying Systems
- Easy to apply
- Fixing elements can be used with the Autotool CPK hybrid and Autotool Systems 3080 / ATS flex
- Special designed for automatisation processes
| Application | This fixing element for round holes 6.5 mm with bundling bar is special designed for automatisation processes. They can be used with the Autotool CPK hybrid and Autotool Systems 3080 / ATS flex but also with other cable ties or tapes. This article is assembled with a seal. |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Key product features | products for automatic tools |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | ATSBCSFT6.5-MD-PA66HIRHS-BK |

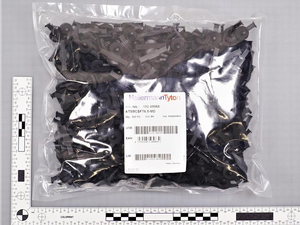

| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Short Description | Bundling Clip 39x2.5 mm black PA66HIRHS |
| Type | ATSBCSFT6.5-MD |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026289830 |
| Packaging 1 - Height (m) | 0.055m |
| Packaging 1 - Length (m) | 0.27m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0046m³ |
| Packaging 1 - Weight (kg) | 0.499362kg |
| Packaging 1 - Width (m) | 0.31m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 10.09724kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 120000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 142.2kg |
| Packaging 4 - Width (m) | 0.8m |
