23/12/2024

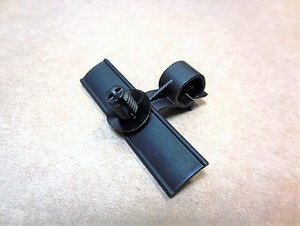

Bundling clip for hole (round), L=60.0mm, black, 500pcs.
Art.-No. 151-02191 | BC60FT6.5HC4-10-PA66HIRHS-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BC60FT6.5HC4-10-PA66HIRHS-BK
    Pack Cont. 500pcs.

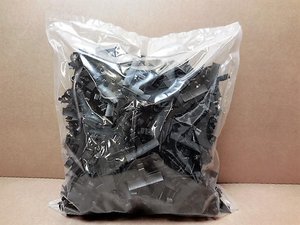

    Package Content packed in bag
    Type BC60FT6.5HC4-10
    Attach to Ø 4.0 - 10.0
    Bundling Bar Length 60.0mm
    Disc ∅ 16.0mm
    Fixing Hole Shape Circular
    Height (H2) 12.5mm
    Length (L) 60.0mm
    Length (L2) 10.0mm
    Panel Thickness max. 0.7 - 7.0mm
    Weight/Unit 0.00291kg
    Width (W) 36.5mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.7 - 7 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026594316
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03555m³
    Packaging 1 - Weight (kg) 1.484135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 9.72481kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 137.688kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
