01/03/2025

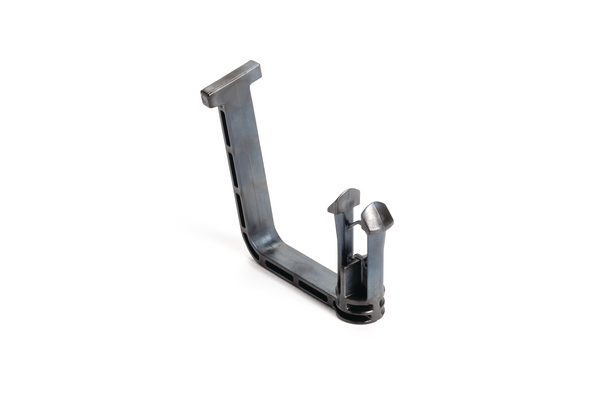

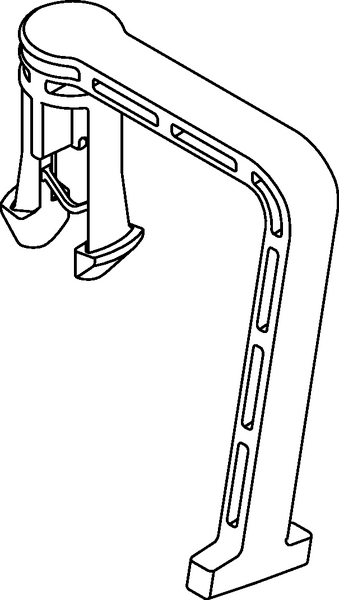

Bundling clip for hole (round), L=51.0mm, SO=37.5mm, silver, 2500pcs.
Art.-No. 133-04335 | BCATC90DEG-PPS-SR |

Copied
Compact I-beam design provides a robust solution for all bundles from small to large.

    Add to watchlist
    Downloads
    Colour Silver (SR)
    Fixation Method arrowhead
    Material Polyphenylene Sulfide (PPS)
    PART DESCRIPTION BCATC90DEG-PPS-SR
    Pack Cont. 2500pcs.
    Package Content packed in bag
    Type BCATC90DEG
    Bundling Bar Length 2.0"
    Bundling Bar Length 51.0mm
    Length (L) 51.0mm
    Offset Length 37.5mm
    Panel Thickness max. 13.5 - 15.0mm
    Width (W) 16.0mm
    for Hole ⌀ (FH) 11.7 - 13.0 mm
    for Panel Thickness min - max 13.5 - 15 mm
    CE Certification No
    CSA Certified No
    ROHS compliant No
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026725628
    Packaging 3 - Height (m) 0.20954999999999998m
    Packaging 3 - Length (m) 0.6048375m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0501m³
    Packaging 3 - Weight (kg) 10.63kg
    Packaging 3 - Width (m) 0.39528749999999997m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
