21/12/2024

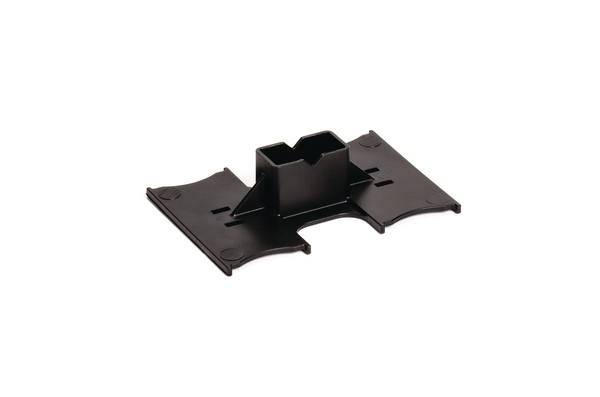

Bundling clip for hole (round), L=50.0mm, black, 1000pcs.
Art.-No. 151-01119 | BCBRKTSB5-PA66HIRHSUV-BK |  Details

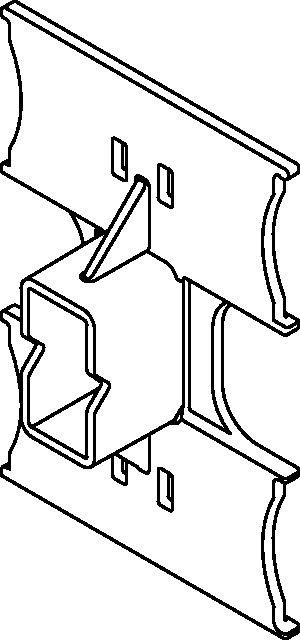

Connector clips with bracket provide a simple and easy method for mounting connectors in a variety of applications.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION BCBRKTSB5-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Product Group Bundling Clips for Weld Studs, lateral adjustment
    Type BCBRKTSB5
    Bundling Bar Length 50.0mm
    Height (H) 17.65mm
    Length (L) 71.0mm
    Stud ∅ 5.0 mm
    Width (W) 50.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant No
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026457789
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Weight (kg) 7.2kg
    Packaging 3 - Width (m) 0.396875m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
