25/11/2024

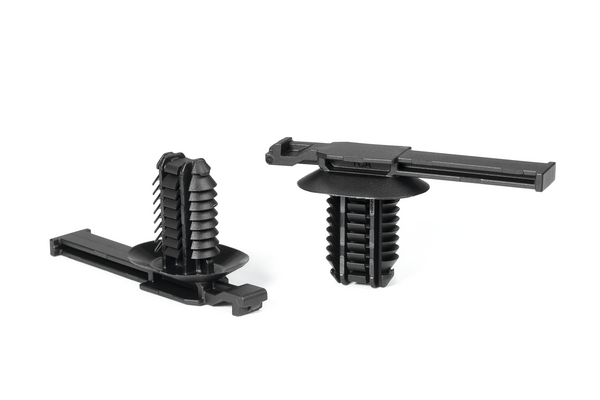

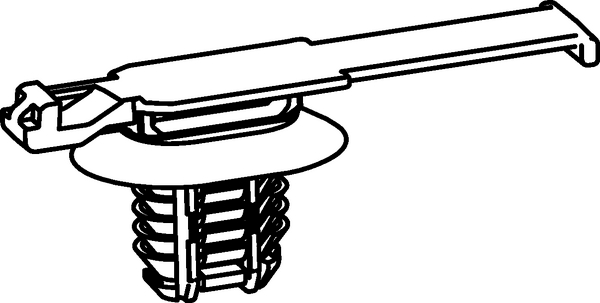

Connector clip, EWCAP-005-11, black, 1000pcs.
Art.-No. 151-02529 | BCC51FTOVAL-PA66HIRHS-BK |  Details

Connector Clip for Connectors with 11.0 mm slot and Bundling Clip.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BCC51FTOVAL-PA66HIRHS-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag

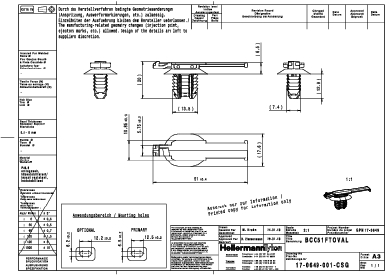

    Type BCC51FTOVAL
    Height (H) 20.0mm
    Length (L) 51.0mm
    Panel Thickness max. 0.6 - 6.0mm
    Weight/Unit 0.001485kg
    Width (W) 17.6mm
    for Hole ∅ (FH) 6.2 - 12.2 mm, 6.5 x 12.5 mm
    for Panel Thickness min - max 0.6 - 6 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026611075
    Packaging 1 - Height (m) 0.085m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01511m³
    Packaging 1 - Weight (kg) 1.514135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 8000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 12.93308kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 96000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 176.184kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
