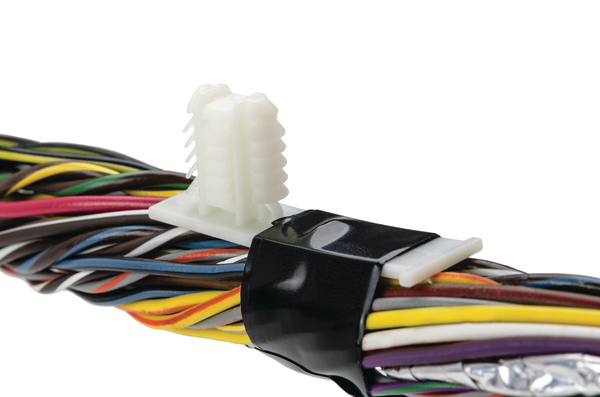

Bundling clip for hole (oval), L=38.7mm, natural, 10000pcs.
Art.-No. 151-03493 | BCFTOVAL2-PA66HIRHS-NA |  Details

    • Simple installation, tool-free
    • Is attached to the bundle element with cable ties or adhesive tape
    • The oval base geometry serves as anti-twist protection and for defined cable routing
    Add to watchlist
    Downloads
    Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
    Colour Natural (NA)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BCFTOVAL2-PA66HIRHS-NA
    Pack Cont. 10000pcs.
    Package Content packed in bag
    Product Family Oval holes
    Product Group Bundling Clips with Fir Tree
    Type BCFTOVAL2
    Bundling Bar Length 38.7mm
    Fixing Hole Shape Oval
    Length (L) 38.7mm
    Panel Thickness max. 0.6 - 6.0mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    Country of Origin CN
    GTIN-13 / EAN 4031026672045
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
