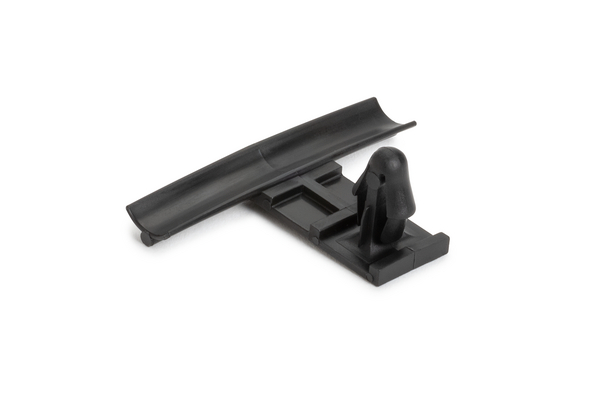

Bundling clip, L=45.0mm, black, 2000Carton
Art.-No. 133-02801 | BCOS20X40AH6.35-PP-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Material Polypropylene (PP)
    PART DESCRIPTION BCOS20X40AH6.35-PP-BK
    Pack Cont. 2000Carton
    Package Content packed in carton
    Type BCOS20X40AH6.35
    Bundle Diameter max (metric) 8.5mm
    Bundle ∅ 8.5mm
    Bundling Bar Length 1.77"
    Bundling Bar Length 45.0mm
    Height (H) 15.87mm
    Height (H2) 3.17mm
    Length (L) 45.0mm
    Length (L2) 13.0mm
    Panel Thickness max. 0.5 - 3.8mm
    Width (W) 20.0mm
    for Hole ∅ (FH) 6.1 - 6.6 mm
    for Panel Thickness min - max 0.5 - 3.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin MX
    GTIN-13 / EAN 4031026580760
    Packaging 3 - Height (m) 0.1603502m
    Packaging 3 - Length (m) 0.5159502m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0282m³
    Packaging 3 - Width (m) 0.3413252m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
