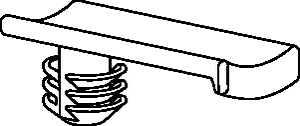

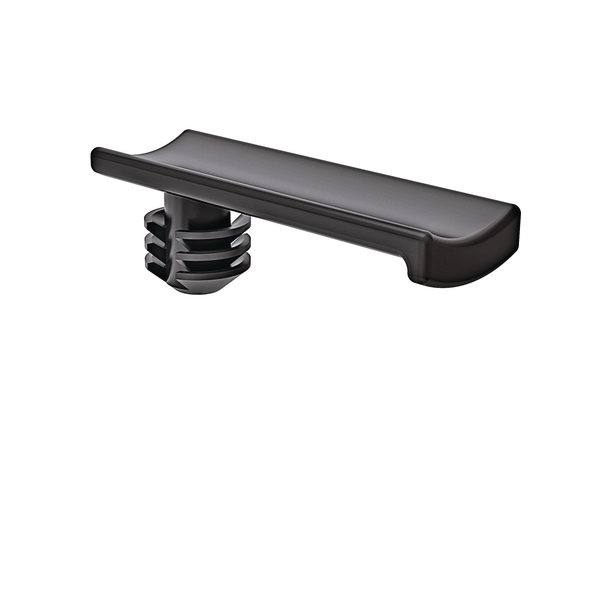

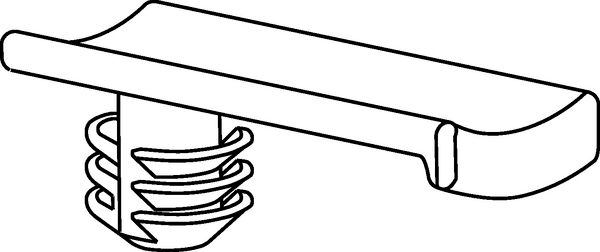

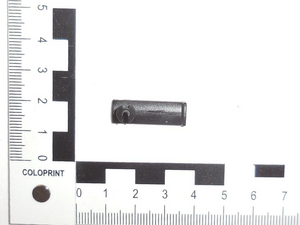

Bundling clip for hole (round), L=24.9mm, black, 25000pcs.
Art.-No. 151-01872 | BCOWFT5-PA66HIRHS-BK Details

Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION BCOWFT5-PA66HIRHS-BK
Pack Cont. 25000pcs.

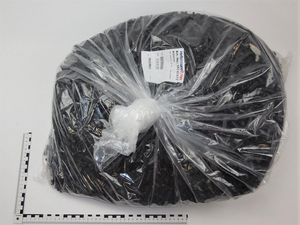

Package Content packed in bag
Product Family Bundling Clip, One Wing
Product Group Bundling Clips with Fir Tree, for Round Holes
Short Description Bundling Clip, round hole 5.2 - 5.6 mm, fir tree, high impact modified, heat stabilised, black
Type BCOWFT5
Bundling Bar Length 24.9mm
Height (H) 8.3mm
Length (L) 24.9mm
Panel Thickness max. 0.6 - 3.1mm
Weight/Unit 0.000383kg
Width (W) 8.0mm
for Hole ∅ (FH) 5.2 - 5.6 mm
for Panel Thickness min - max 0.6 - 3.1 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026576534
Packaging 1 - Qty 25000
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 9.641663kg
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 25000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 10.291663kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 500000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 226.84kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
