24/12/2024

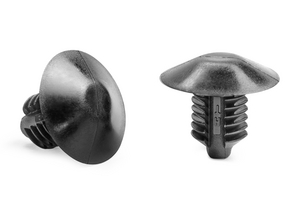

Blind plug, ∅6.3 - 7.0 mm, T=0.75 - 6.0mm, black, 1000
Art.-No. 151-03315 | BPFT6LG-PA66HIRHS-BK |  Details

Blind Plug with FirTree for round holes.

    • Easy assembly without the need of a tool
    • Disc of the part covers the hole and minimises ingress of dust, dirt and water
    Add to watchlist
    Downloads Datasheet
    Application Our Blind Plugs were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels. Whenever needed to secure a hole against dirt or dust. Sometimes even used for optical reasons.
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BPFT6LG-PA66HIRHS-BK
    Pack Cont. 1000
    Package Content packed in bag
    Type BPFT6LG
    Panel Thickness max. 0.75 - 6.0mm
    Weight/Unit 0.00041kg
    for Hole ∅ (FH) 6.3 - 7.0 mm
    for Panel Thickness min - max 0.8 - 6 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026650616
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.22m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00528m³
    Packaging 1 - Weight (kg) 0.41898kg
    Packaging 1 - Width (m) 0.24m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 18000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 8.14164kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 432000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 216.408kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
