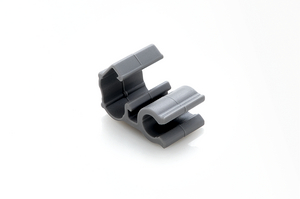

Cable clip, Dmax=6.0mm
Art.-No. 151-14200 | Cable Clip-PA66HIR-NA |  Details

    • Easy to install without the need for a tool
    • 6 mm entry opens and closes by clicking into the required position
    • Suitable for post-installation of bundles
    Add to watchlist
    Downloads Datasheet
    Colour Natural (NA)
    Fixation Method Omega Clip
    Material Polyamide 6.6, high impact modified (PA66HIR)
    PART DESCRIPTION Cable Clip-PA66HIR-NA
    Pack Cont. 1000pcs.
    Package Content packed in pcs.
    Product Family Cable Clip for Cable diameter 5 and 6 mm
    Product Group Bracket cable loom
    Type Cable Clip
    Attach to Ø 5.1
    Bundle Diameter max (metric) 6.0mm
    Bundle ∅ 6.0mm
    Height (H) 8.15mm
    Length (L) 18.9mm
    Nominal ∅ 0.2"
    Nominal ∅ 5.14mm
    Weight/Unit 0.0008kg
    Width (W) 12.0mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026228464
    Packaging 1 - Height (m) 0.3m
    Packaging 1 - Length (m) 0.625m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0825m³
    Packaging 1 - Weight (kg) 0.853478kg
    Packaging 1 - Width (m) 0.44m
    Packaging 2 - Type carton
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 15000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.62217kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 180000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 184.38kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
