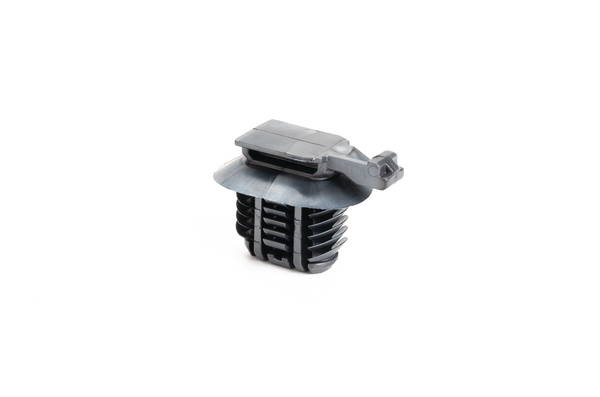

Connector clip for connector/for hole (oval), EWCAP-005-11, silver, 5000pcs.
Art.-No. 151-02896 | CC11B-PPS-SR |

Copied
Oval fir tree ensures a tight connection without rotation.

    • Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
    • Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
    • A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
    Add to watchlist
    Downloads
    Colour Silver (SR)
    Fixation Method Fir Tree for oval holes
    Material Polyphenylene Sulfide (PPS)
    PART DESCRIPTION CC11B-PPS-SR
    Pack Cont. 5000pcs.
    Package Content packed in bag
    Type CC11B
    Height (H) 20.60mm
    Length (L) 30.0mm
    Panel Thickness max. 0.6 - 6.0mm
    Weight/Unit 0.00208kg
    Width (W) 18.20mm
    for Hole ⌀ (FH) 9.0 x 17.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026702438
    Packaging 1 - Height (m) 0.214m
    Packaging 1 - Length (m) 0.635m
    Packaging 1 - Qty 5000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.05177m³
    Packaging 1 - Weight (kg) 10.400001kg
    Packaging 1 - Width (m) 0.381m
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Weight (kg) 11.260001kg
    Packaging 3 - Width (m) 0.396875m
    Packaging 4 - Height (m) 1.224m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 75000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.175m³
    Packaging 4 - Weight (kg) 189.9kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
