Connector clip for connector, EWCAP-005-11, black, 1000pcs.
Art.-No. 151-03895 | CC11SLCC11BC22-PA66HIRHS-BK |  Details

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Bundling bar for strain relief
    • According USCAR specification EWCAP-005-11
    Add to watchlist
    Downloads Datasheet
    Application Connector Clip adapter for a connector on one site and a connector clip on the other site with a 11 mm slot according the USCAR specification EWCAP-005-11. The product has a bundling bar for strain relief of the connector cable.
    Colour Black (BK)
    Fixation Method Connector Clip
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC11SLCC11BC22-PA66HIRHS-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Type CC11SLCC11BC22
    Type of connection USCAR11
    Variant 11 mm USCAR Connector Clip

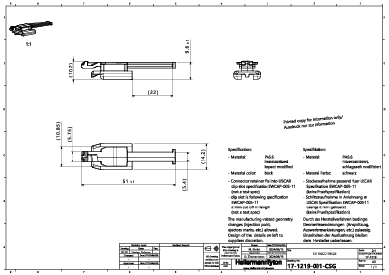

    Bundling Bar Length 22.0mm
    Height (H) 9.6mm
    Length (L) 51.0mm
    Length (L2) 22.0mm
    Weight/Unit 0.001743kg
    Width (W) 14.2mm
    Width (W2) 10.85mm
    Width (W3) 5.75mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026708799
    Packaging 1 - Height (m) 0.08m
    Packaging 1 - Length (m) 0.43m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01066m³
    Packaging 1 - Weight (kg) 1.764815kg
    Packaging 1 - Width (m) 0.31m
    Packaging 3 - Height (m) 0.538m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1213m³
    Packaging 3 - Width (m) 0.386m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
