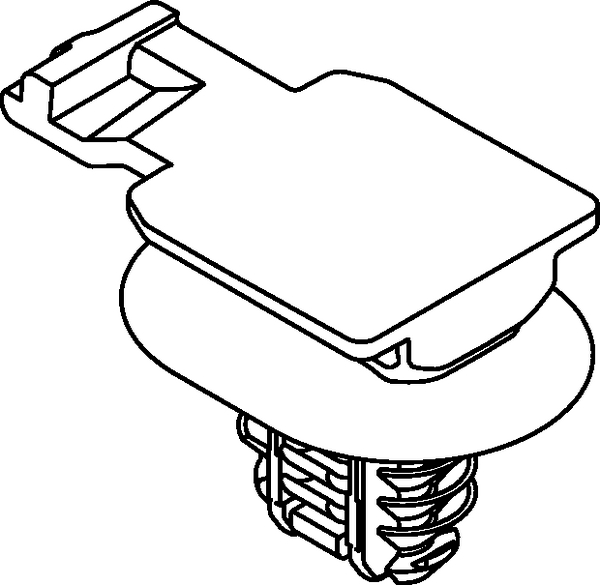

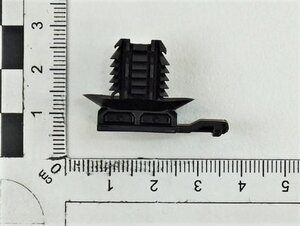

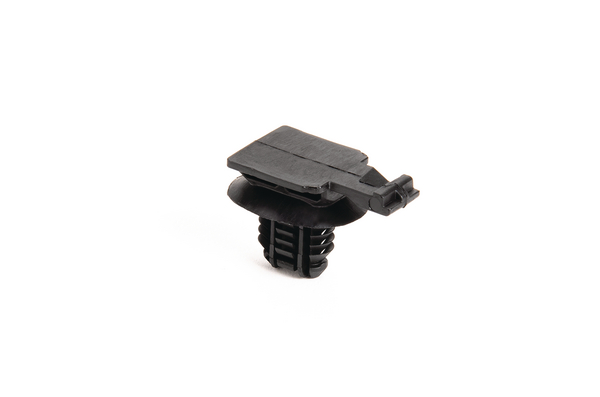

Connector clip, EWCAP-005-17, black, 3000Carton
Art.-No. 151-02806 | CC17FTOVAL-PA66HIRHSUV-BK |

Copied
Oval fir tree ensures a tight connection without rotation.

    • Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
    • Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
    • A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION CC17FTOVAL-PA66HIRHSUV-BK

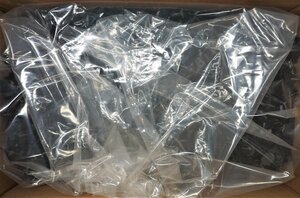

    Pack Cont. 3000Carton
    Package Content packed in box
    Type CC17FTOVAL
    Height (H) 21.1mm
    Length (L) 32.7mm
    Panel Thickness max. 0.6 - 6.75mm
    Weight/Unit 0.0018kg
    Width (W) 18.2mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026702391
    Packaging 1 - Qty 3000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 5.400001kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.517525m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 6.010001kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 141.2kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
