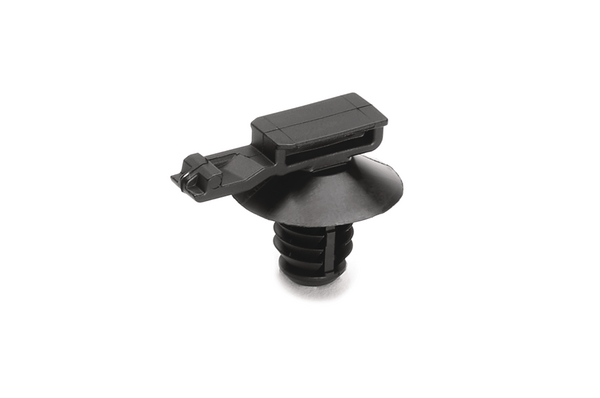

Connector clip, EWCAP-005-7, black, 5000pcs.
Art.-No. 151-01889
| CC21-PA66HIRHSUV-BK
|
Details
- Connector easily installed by simply pushing into place
- Connection can be released (non-destructive)
- One fir tree foot part can be used for a variety of panel thicknesses
- Disc covers the hole to prevent dirt and water gaining access
- For twist protection: Variants with additional stick or for oval holes
| Application | The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | CC21-PA66HIRHSUV-BK |
| Pack Cont. | 5000pcs. |
| Package Content packed in | carton |
| Type | CC21 |
| Type of connection | USCAR7 |
| Variant | 7.6 - 8.4 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | No |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026578446 |
| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 5.82kg |
| Packaging 3 - Width (m) | 0.2921m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 90.84kg |
| Packaging 4 - Width (m) | 0.8m |
