Connector clip, black, 1000pcs.
Art.-No. 151-02859 | CC5SFT65x130-MD-PA66HIRHS-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC5SFT65x130-MD-PA66HIRHS-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag

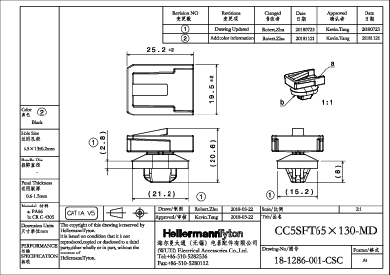

    Type CC5SFT65x130-MD
    Height (H) 20.6mm
    Length (L) 25.2mm
    Panel Thickness max. 0.6-1.5mm
    Width (W) 19.5mm
    for Hole ∅ (FH) 6.5 x 13.0 mm
    for Panel Thickness min - max 0.6 - 1.5 mm
    Operating Temperature -40 °C to +105 °C
    Country of Origin CN
    GTIN-13 / EAN 4031026620329
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
