Connector clip for connector/for edge, EWCAP-005-7, black, 1500pcs.
Art.-No. 151-04048 | CC7EC1-3SV-PA66HIRHS-BK |  Details

ConnectorClip for edges 1 - 3 mm and with a EWCAP-0005-07 interface.

    • Simply push per hand onto a plastic edge
    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered spring steel
    • Ideal for applications where holes or adhesives are not suitable
    Show more
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method EdgeClip, sideway
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC7EC1-3SV-PA66HIRHS-BK
    Pack Cont. 1500pcs.
    Package Content packed in bag
    Type CC7EC1-3SV
    Type of connection USCAR7

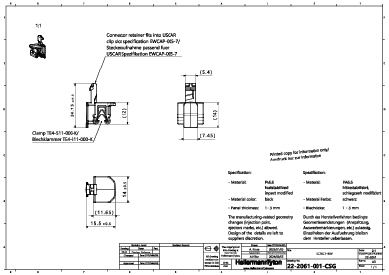

    Height (H) 24.15mm
    Height (H2) 12.0mm
    Length (L) 15.5mm
    Length (L2) 11.65mm
    Panel Thickness max. 1.0 - 3.0mm
    Weight/Unit 0.0016kg
    Width (W) 14.0mm
    Width (W2) 7.45mm
    Width (W3) 5.4mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026731315
    Packaging 1 - Height (m) 0.065m
    Packaging 1 - Length (m) 0.43m
    Packaging 1 - Qty 1500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00866m³
    Packaging 1 - Weight (kg) 2.421815kg
    Packaging 1 - Width (m) 0.31m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 7500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 12.709075kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 180000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 326.04kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
