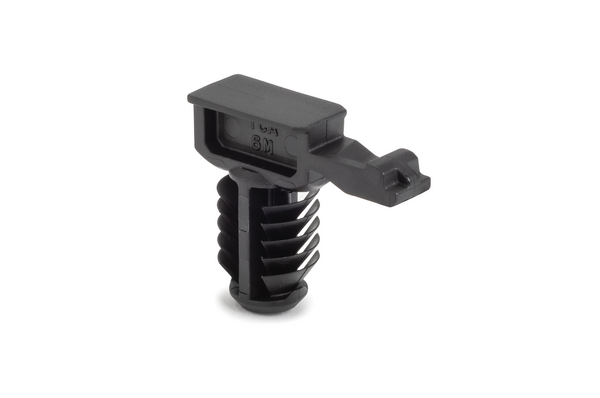

Connector clip, black, 3000pcs.
Art.-No. 151-03512 | CC7FT8LG-PA46-BK |  Details

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    Show more
    Add to watchlist
    Downloads Datasheet
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION CC7FT8LG-PA46-BK
    Pack Cont. 3000pcs.
    Package Content packed in carton
    Type CC7FT8LG

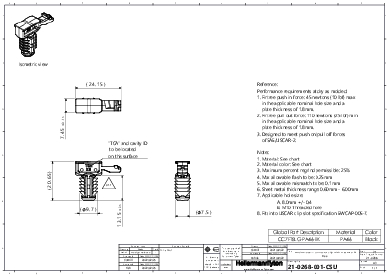

    Height (H) 20.7mm
    Length (L) 24.2mm
    Panel Thickness max. 0.60 - 6.0mm
    Width (W) 7.45mm
    for Hole ∅ (FH) 7.6 - 8.4 mm
    for Panel Thickness min - max 0.6 - 6 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +130 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin MX
    GTIN-13 / EAN 4031026672960
    Packaging 3 - Height (m) 0.136525m
    Packaging 3 - Length (m) 0.5191125m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0217m³
    Packaging 3 - Weight (kg) 4.09kg
    Packaging 3 - Width (m) 0.3063875m
    Packaging 4 - Qty 168000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
