22/11/2024

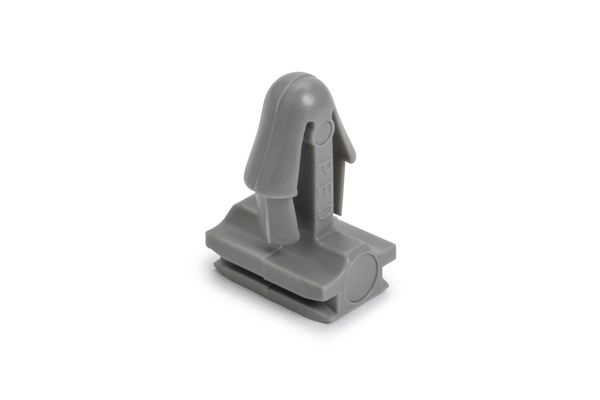

Connector clip, grey, 12000pcs.
Art.-No. 133-02900 | CCAH6.35PT3.8-PA66HIRHS-GY |  Details

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Add to watchlist
    Downloads Datasheet
    Colour Grey (GY)
    Fixation Method arrowhead
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCAH6.35PT3.8-PA66HIRHS-GY
    Pack Cont. 12000pcs.

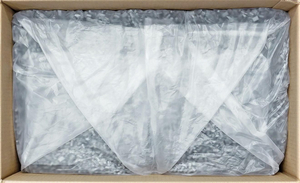

    Package Content packed in box
    Type CCAH6.35PT3.8
    Height (H) 13.46mm
    Length (L) 12.2mm
    Panel Thickness max. 3.81mm
    Weight/Unit 0.000602kg
    Width (W) 8.4mm
    for Hole ∅ (FH) 6.1 - 6.6 mm
    for Panel Thickness min - max 3.8 - 3.8 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026585109
    Packaging 1 - Qty 12000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 7.224001kg
    Packaging 3 - Height (m) 0.1730375m
    Packaging 3 - Length (m) 0.57785m
    Packaging 3 - Qty 12000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0349m³
    Packaging 3 - Weight (kg) 8.334001kg
    Packaging 3 - Width (m) 0.34925m
    Packaging 4 - Height (m) 1.182m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 288000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.135m³
    Packaging 4 - Weight (kg) 221.016kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
