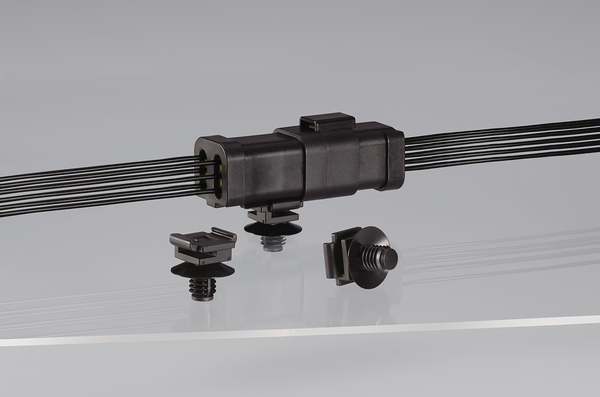

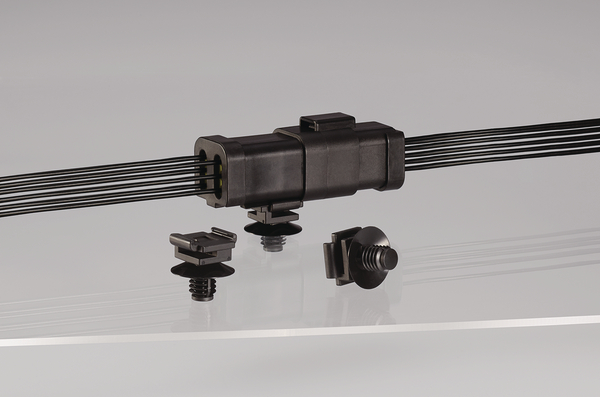

Connector clip for hole (round), black, 100pcs.
Art.-No. 151-02336 | CCFT11-PA66HSW-BK |  Details

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    Show more
    Add to watchlist
    Downloads Datasheet
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    Mounting Screw Type M8 Screw
    PART DESCRIPTION CCFT11-PA66HSW-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family CCFT11 for Round Holes
    Product Group Connector Clip with Fir Tree
    Type CCFT11
    Disc ∅ 17.5mm
    Length (L) 18.7mm
    Width (W) 15.8mm
    for Panel Thickness min - max 1.3 - 4.5 mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387117660
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
