25/12/2024

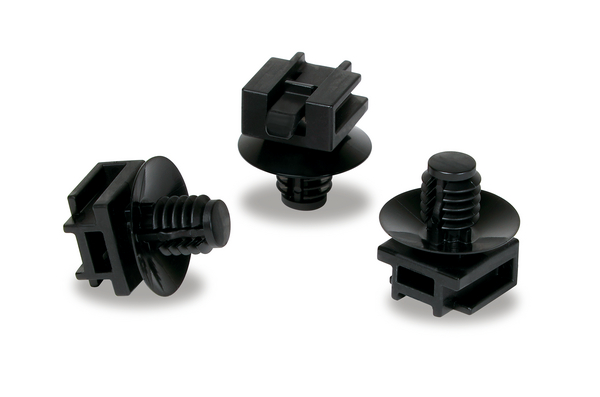

Connector clip, black, 100pcs.
Art.-No. 151-03917 | CCFT11EJ2-PA66HSW-BK |  Details

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    Show more
    Add to watchlist
    Downloads Datasheet
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    PART DESCRIPTION CCFT11EJ2-PA66HSW-BK
    Pack Cont. 100pcs.
    Type CCFT11EJ2
    Length (L) 18.4mm
    Width (W) 12.7mm
    for Panel Thickness min - max 1.2 - 4.5 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +110 °C
    Country of Origin JP
    GTIN-13 / EAN 4944387125894
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
