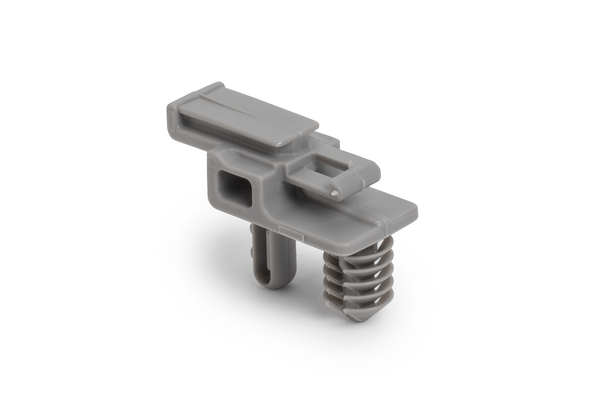

Connector clip, grey, 4000Bag
Art.-No. 133-04509
| CCFT6.5LG-TS5-PA66HIRHS-GY
|
Details
- Connector easily installed by simply pushing into place
- Connection can be released (non-destructive)
- One fir tree foot part can be used for a variety of panel thicknesses
- Disc covers the hole to prevent dirt and water gaining access
- For twist protection: Variants with additional stick or for oval holes
| Application | The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry. |
| Colour | Light Grey (LTGY) |
| Fixation Method | Fir tree for round holes |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | CCFT6.5LG-TS5-PA66HIRHS-GY |
| Pack Cont. | 4000Bag |
| Package Content packed in | bag |
| Type | CCFT6.5LG-TS5 |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026757100 |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.517525m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0344m³ |
| Packaging 3 - Weight (kg) | 7.674kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.194m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 80000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.146m³ |
| Packaging 4 - Weight (kg) | 174.48kg |
| Packaging 4 - Width (m) | 0.8m |
