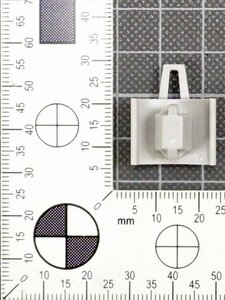

Connector clip for hole (oval), EWCAP-005-7, grey, 6000pcs.
Art.-No. 151-02450 | CCIVSFT6.5x130-PA46-GY

Copied
  • Connector easily installed by simply pushing into place
  • Connection can be released non-destructive
  • Easy assembly, just shuffle manually
  • Oval connectors offer twist protection
Application The connector clip used here have been desgined for electronic cables and cable sets used in the automotive industry.
Colour Grey (GY)
Material Polyamide 4.6 (PA46)
PART DESCRIPTION CCIVSFT6.5x130-PA46-GY
Pack Cont. 6000pcs.
Package Content packed in box
Product Family Connector clip with arrowhead mount
Product Group Connector Clips for Oval Holes
Type CCIVSFT6.5x130
Height (H) 14.6mm
Length (L) 23.0mm
Weight/Unit 0.001221kg
Width (W) 19.6mm
for Hole ⌀ (FH) 6.5 x 13.0 mm
for Panel Thickness min - max 0.7 - 3 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026609447
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.43m
Packaging 1 - Qty 1000

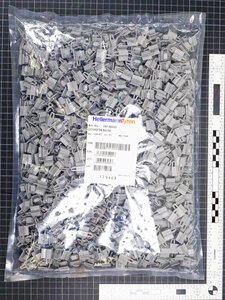

Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0061
Packaging 1 - Weight (kg) 1.242815kg
Packaging 1 - Width (m) 0.315m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 6000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 7.920006kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 144000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 211.08kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162305
