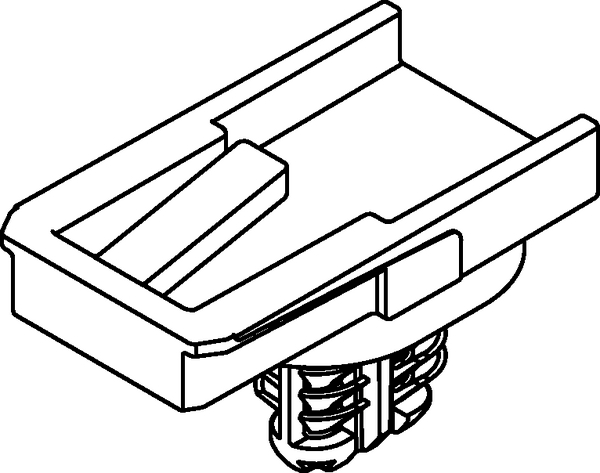

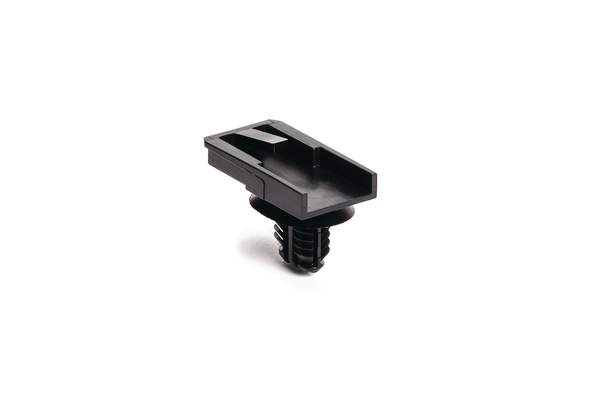

Connector clip for hole (oval), EWCAP-005-23, black, 1500pcs.
Art.-No. 133-04724 | CCOVAL23OS10-PA66HIRHS-BK |

Copied
Connector clip design meets USCAR EWCAP-005-23 clip slot specifications for added assurance.

    • Connector clip design meets USCAR EWCAP-005-23 clip slot specifications for added assurance.
    • 10 mm connector clip offset allows for clearance from obstructions.
    • 4x oval fir tree design fits panels between 0.6 mm to 6.75 mm in thickness, preventing rotation.
    • Provides best-in-class installation and extraction resistance for four common oval sizes, reducing part inventory.
    Add to watchlist
    Downloads
    Application Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCOVAL23OS10-PA66HIRHS-BK
    Pack Cont. 1500pcs.
    Package Content packed in pack
    Type CCOVAL23OS10
    Height (H) 22.87mm
    Length (L) 35.2mm
    Panel Thickness max. 0.6 - 6.75mm
    Weight/Unit 0.0036kg
    Width (W) 19.7mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026725772
    Packaging 1 - Type carton
    Packaging 3 - Height (m) 0.1397m
    Packaging 3 - Length (m) 0.51276m
    Packaging 3 - Qty 1500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0223m³
    Packaging 3 - Weight (kg) 5.92kg
    Packaging 3 - Width (m) 0.31115m
    Packaging 4 - Height (m) 1.264m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.213m³
    Packaging 4 - Weight (kg) 210.44kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
