29/04/2025

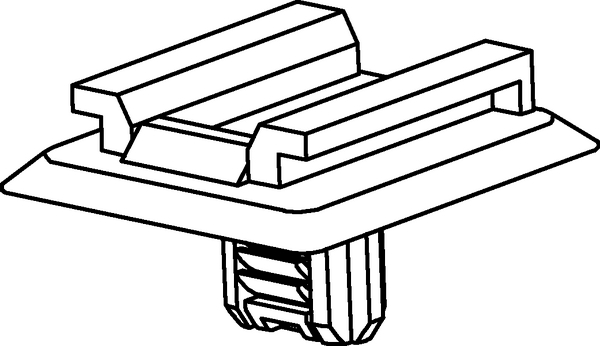

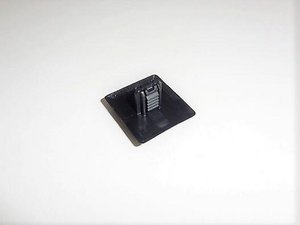

Connector clip, black, 1000pcs.
Art.-No. 133-03902 | CCPAEBDOP6.0x12.0-PA66HIRHS-BK |

Copied

    • Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
    • Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
    • A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCPAEBDOP6.0x12.0-PA66HIRHS-BK
    Pack Cont. 1000pcs.

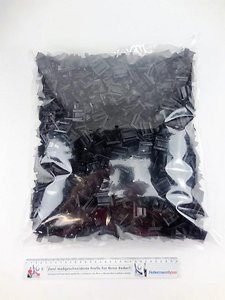

    Package Content packed in bag

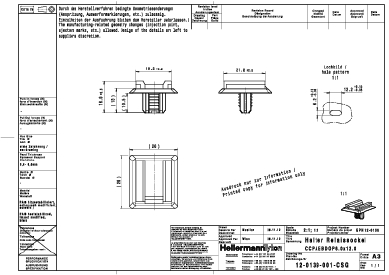

    Type CCPAEBDOP6.0x12.0
    Disc ⌀ 29.0 x 26.0mm
    Height (H) 16.9mm
    Height (H2) 6.4mm
    Length (L) 29.0mm
    Panel Thickness max. 0.6 - 6.0mm
    Weight/Unit 0.001909kg
    Width (W) 26.0mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.6 - 6 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026455464
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0159975m³
    Packaging 1 - Weight (kg) 1.938135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 12.44881kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 170.376kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
