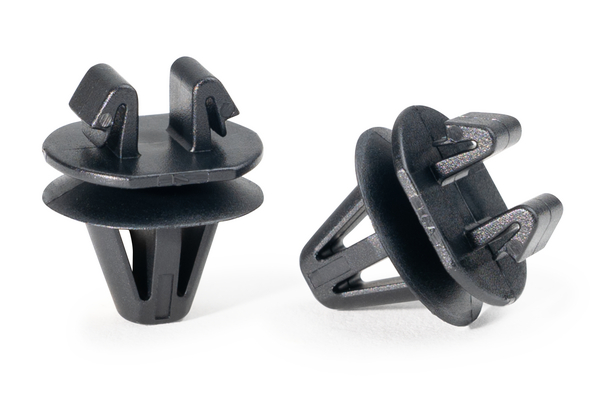

Connector clip for hole (round), black, 1000pcs.
Art.-No. 151-01171 | CCSCSFT8-0.6-1.4-PA66HIRHS-BK |  Details

Connector clip with arrow head for round holes, to fix cable chanels, brackets and holders.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCSCSFT8-0.6-1.4-PA66HIRHS-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Type CCSCSFT8-0.6-1.4
    Disc ∅ 16.0mm
    Height (H) 18.9mm
    Height (H2) 9.3mm
    Length (L) 16.0mm
    Panel Thickness max. 0.6 - 1.4mm
    Weight/Unit 0.00079kg
    Width (W) 16.0mm
    for Hole ∅ (FH) 8.0 mm
    for Panel Thickness min - max 0.6 - 1.4 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026465593
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 0.811815kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.171m
    Packaging 3 - Length (m) 0.56m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0172m³
    Packaging 3 - Weight (kg) 3.46726kg
    Packaging 3 - Width (m) 0.18m
    Packaging 4 - Height (m) 1.17m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 192000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.123m³
    Packaging 4 - Weight (kg) 187.464kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
