19/11/2024

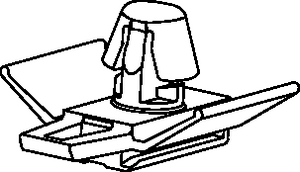

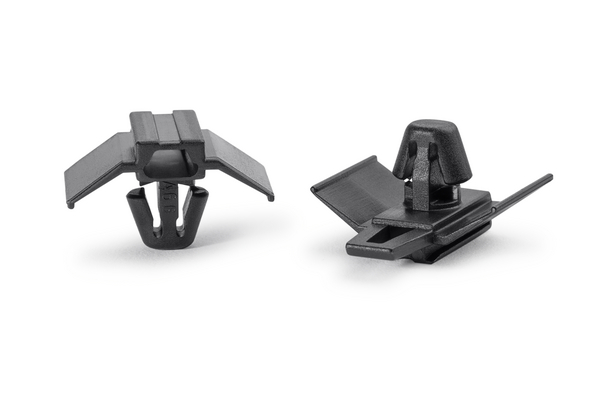

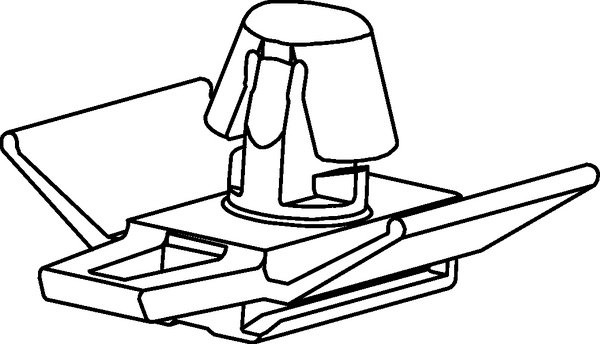

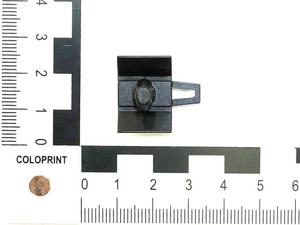

Connector clip for hole (round), black, 8000pcs.
Art.-No. 151-01809 | CCSFT6.3-PA66-BK |  Details

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION CCSFT6.3-PA66-BK
    Pack Cont. 8000pcs.
    Package Content packed in box
    Product Family With Arrowhead
    Product Group Connector Clips for round holes
    Short Description Connector Clip, round hole 6.3 - 6.5 mm, arrow head, black
    Type CCSFT6.3
    Height (H) 13.0mm
    Length (L) 23.0mm
    Weight/Unit 0.000747kg
    Width (W) 21.4mm
    for Hole ∅ (FH) 6.3 - 6.5 mm
    for Panel Thickness min - max 0.7 - 2.5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026572864
    Packaging 1 - Height (m) 0.065m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01155m³
    Packaging 1 - Weight (kg) 1.523135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 8000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 6.69254kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 192000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 181.608kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
    Show all
