Connector clip, black, 500pcs.
Art.-No. 151-02528 | CCSFT6513PT1.8-2.5-PA66HIRHS-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)

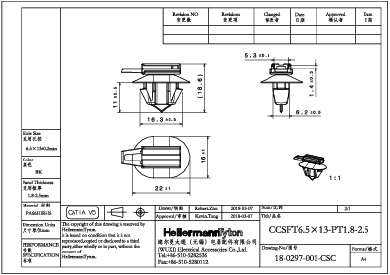

    PART DESCRIPTION CCSFT6513PT1.8-2.5-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Type CCSFT6513PT1.8-2.5
    Height (H) 18.6mm
    Length (L) 26.5mm
    Panel Thickness max. 1.8-2.5mm
    Width (W) 16.0mm
    for Hole ∅ (FH) 6.5 x 13.0 mm
    for Panel Thickness min - max 1.8 - 2.5 mm
    Operating Temperature -40 °C to +105 °C
    Country of Origin CN
    GTIN-13 / EAN 4031026611068
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
