22/12/2024

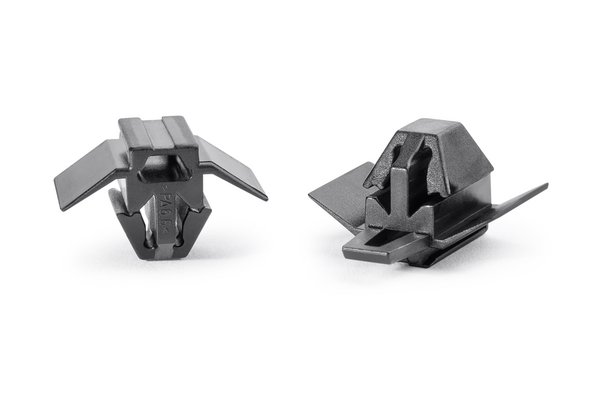

Connector clip for hole (oval), black, 1200pcs.
Art.-No. 151-01807 | CCSFT8.0x15.0-PA66-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION CCSFT8.0x15.0-PA66-BK
    Pack Cont. 1200pcs.
    Package Content packed in box
    Product Family With Arrowhead
    Product Group Connector Clips for Oval Holes
    Short Description Connector Clip, oval hole 8.0 x 15.0 mm, arrow head, black
    Type CCSFT8.0x15.0
    Height (H) 13.0mm
    Length (L) 23.0mm
    Panel Thickness max. 0.8 - 2.8mm
    Weight/Unit 0.001238kg
    Width (W) 21.36mm
    for Hole ∅ (FH) 8.0 x 15.0 mm
    for Panel Thickness min - max 0.8 - 2.8 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026572857
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 1200
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 1.507415kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 8.137075kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 144000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 216.312kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
