24/12/2024

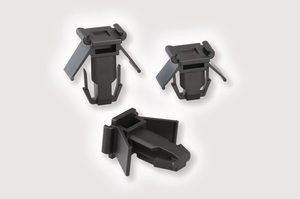

Connector clip, black, 100pcs.
Art.-No. 151-03216 | CCWPM712B-PA66HSW-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    PART DESCRIPTION CCWPM712B-PA66HSW-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family CCWPM712 for Oval Holes
    Product Group Connector Clip with Arrowhead
    Type CCWPM712B
    Height (H) 15.0mm
    Length (L) 27.3mm
    Panel Thickness max. 12.0mm
    Width (W) 25.5mm
    for Hole ∅ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 6 - 12 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +110 °C
    Country of Origin JP
    GTIN-13 / EAN 4944387121803
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
