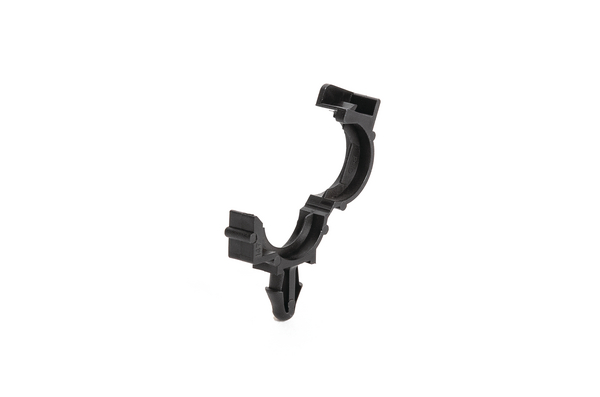

Corrugated tube clip, black, 2400pcs.
Art.-No. 151-02676 | CDC10-13AH6.35-PP-BK |  Details

Self-affixing arrowhead configuration.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method arrowhead
    Key product features for convoluted tubes or with rib, lockable
    Material Polypropylene (PP)
    PART DESCRIPTION CDC10-13AH6.35-PP-BK
    Pack Cont. 2400pcs.
    Package Content packed in carton
    Type CDC10-13AH6.35
    Bundle Diameter max (metric) 13.0mm
    Bundle ∅ 13.0mm
    Diameter (D) 13.6mm
    Height (H) 50.9mm
    Length (L) 37.4mm
    Width (W) 7.6mm
    for Hole ∅ (FH) 6.35 mm
    ∅ (D2) 17.8mm
    ∅ D 0.54"
    ∅ D2 0.7"
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026725567
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
