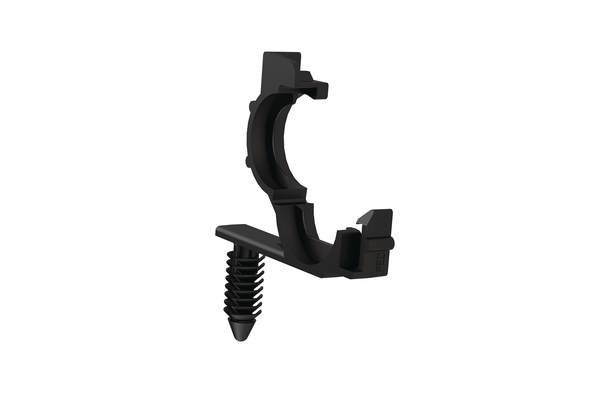

Corrugated tube clip for screw fixation, black, 1400pcs.
Art.-No. 151-02701 | CDC10-13B90OS25FT6-PP-BK |

Copied
Self-affixing fir tree configuration.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree
    Key product features for convoluted tubes or with rib
    Material Polypropylene (PP)
    PART DESCRIPTION CDC10-13B90OS25FT6-PP-BK
    Pack Cont. 1400pcs.
    Package Content packed in carton
    Type CDC10-13B90OS25FT6
    ⌀ (D2) 17.8mm
    ⌀ D 0.54"
    ⌀ D2 0.7"
    Bundle ⌀ 13.0mm
    Bundle Diameter max (metric) 13.0mm
    Diameter (D) 13.6mm
    Height (H) 58.3mm
    Length (L) 47.3mm
    Width (W) 7.6mm
    for Hole ⌀ (FH) 6.63 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>ReSource highlights HellermannTyton products that are made from reccled waste or from virgin materials with relatively lower carbon emissions. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    ReSource highlights HellermannTyton products that are made from reccled waste or from virgin materials with relatively lower carbon emissions.
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 31162305
