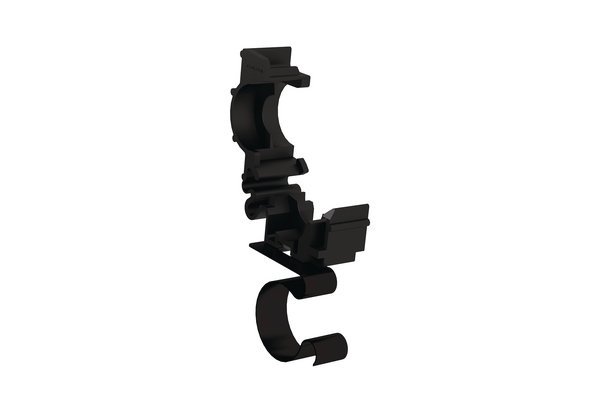

Corrugated tube clip with pipe/tube holder, black, 500pcs.
Art.-No. 151-02622 | CDC10BC20.2-PA66HIRHS-BK |  Details

Living hinge allows placement and positioning of tubing before locking in place.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Bundling Clip
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CDC10BC20.2-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in carton
    Type CDC10BC20.2
    Attach to Ø 10
    Bundle Diameter max (metric) 10.0mm
    Bundle ∅ 10.0mm
    Diameter (D) 11.0mm
    Height (H) 74.6mm
    Length (L) 53.5mm
    Offset Length 7.5mm
    Width (W) 22.5mm
    ∅ (D2) 17.8mm
    ∅ D 0.43"
    ∅ D2 0.7"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
