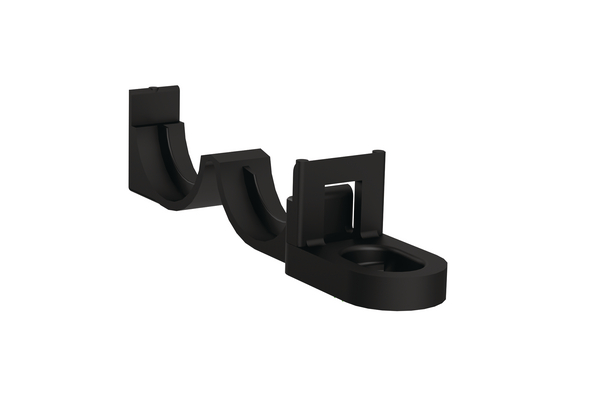

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 1600pcs.
Art.-No. 151-02685 | CDC12AM6-PP-BK |  Details

Can be easily assembled to convoluted tubing and reliably remain in position.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method screwable
    Key product features for convoluted tubes or with rib
    Material Polypropylene (PP)
    Mounting Screw Type M6 Screw
    PART DESCRIPTION CDC12AM6-PP-BK
    Pack Cont. 1600pcs.
    Package Content packed in carton
    Type CDC12AM6
    Variant Threaded
    Attach to Ø 12
    Bundle Diameter max (metric) 12.0mm
    Bundle ∅ 12.0mm
    Diameter (D) 13.6mm
    Height (H) 14.5mm
    Length (L) 66.0mm
    Offset Length 21.8mm
    Stud ∅ M6"
    Stud ∅ M6
    Width (W) 12.7mm
    for Hole ∅ (FH) 6.35 mm
    ∅ (D2) 17.8mm
    ∅ D 0.54"
    ∅ D2 0.7"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
