26/12/2024

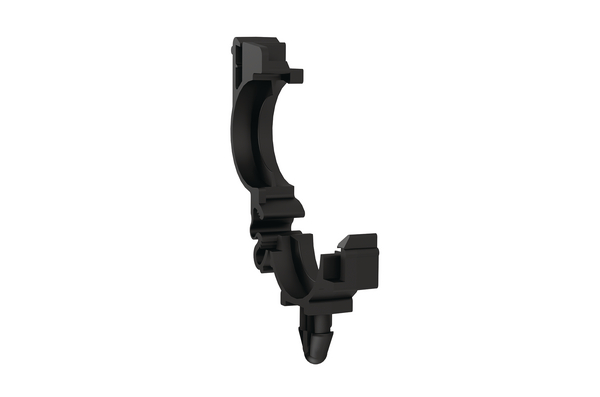

Corrugated tube clip, black, 900pcs.
Art.-No. 151-02727 | CDC16AHW6.54-PA66HIRHS-BK |  Details

Self-affixing arrowhead configuration.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method arrowhead
    Key product features for convoluted tubes or with rib, lockable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CDC16AHW6.54-PA66HIRHS-BK
    Pack Cont. 900pcs.
    Package Content packed in carton
    Type CDC16AHW6.54
    Bundle Diameter max (metric) 16.0mm
    Bundle ∅ 16.0mm
    Diameter (D) 17.4mm
    Height (H) 70.1mm
    Length (L) 53.7mm
    Width (W) 10.2mm
    for Hole ∅ (FH) 6.54 mm
    ∅ (D2) 24.1mm
    ∅ D 0.69"
    ∅ D2 0.95"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
