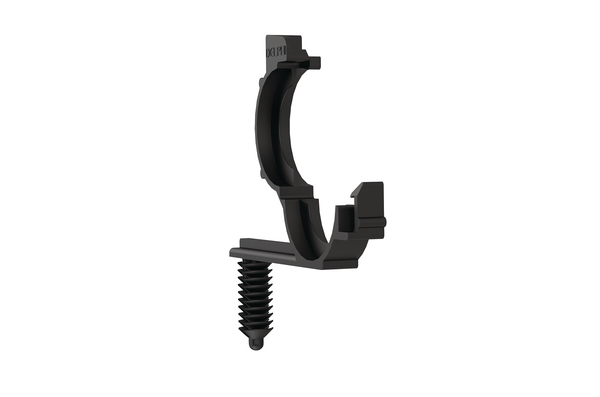

Corrugated tube clip for screw fixation, black, 1000pcs.
Art.-No. 151-02710 | CDC16B90FT6.68-PP-BK |  Details

Self-affixing fir tree configuration.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir Tree
    Key product features for convoluted tubes or with rib
    Material Polypropylene (PP)
    PART DESCRIPTION CDC16B90FT6.68-PP-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Type CDC16B90FT6.68
    Bundle Diameter max (metric) 16.0mm
    Bundle ∅ 16.0mm
    Diameter (D) 17.4mm
    Height (H) 67.8mm
    Length (L) 62.9mm
    Offset Length 38.0mm
    Width (W) 7.6mm
    for Hole ∅ (FH) 6.68 mm
    ∅ (D2) 24.2mm
    ∅ D 0.69"
    ∅ D2 0.95"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
