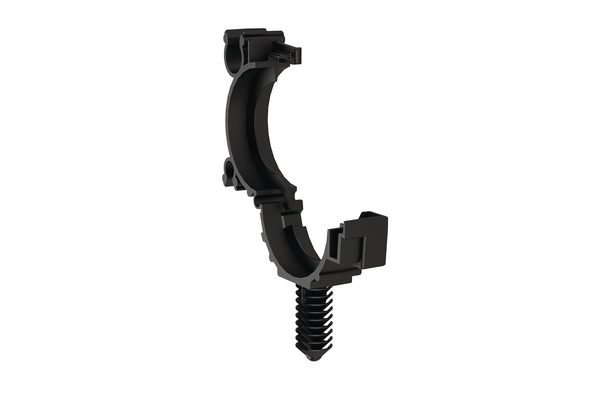

Corrugated tube clip, black, 1200pcs.
Art.-No. 151-02706 | CDC22FT8WC4.64-8.5-PA66-BK |  Details

Self-affixing fir tree configuration.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir Tree
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION CDC22FT8WC4.64-8.5-PA66-BK
    Pack Cont. 1200pcs.
    Package Content packed in carton
    Type CDC22FT8WC4.64-8.5
    Bundle Diameter max (metric) 8.5mm
    Bundle ∅ 4.64-8.5mm
    Bundle ∅ min. 4.64mm
    Diameter (D) 23.7mm
    Height (H) 80.9mm
    Length (L) 60.9mm
    Width (W) 12mm
    for Hole ∅ (FH) 8.0 mm
    ∅ (D2) 31.2mm
    ∅ D 0.93"
    ∅ D2 1.23"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
